About This

• ★★ ATTENTION: This device is NOT a power supply/Ignitor unit. (No voltage output itself, but passing voltage from your fireplace thermopile for safety reason). If using it as a switch, please connect it with power source or circuit in series. ▼ This device outputs up to 6.3V DC. It only operates Latching Solenoid gas valve systems. Remote will NOT replace TR1001, TR1003, and TR1004 models' remotes or receivers, and will not work with any millivolt systems.
• ★ HOW TRANSMITTER WORKS: This was developed to provide a safe, reliable and user-friendly remote control system for gas heating appliances including vent-less gas logs fireplace systems, vent-free wall heaters, direct vent fireplace systems and other appliances using specific American Flame AF Series 6 Volt solenoid operated gas valves. ▼ Instant On/Off, thermostat, timer remote control of the flame and heat.

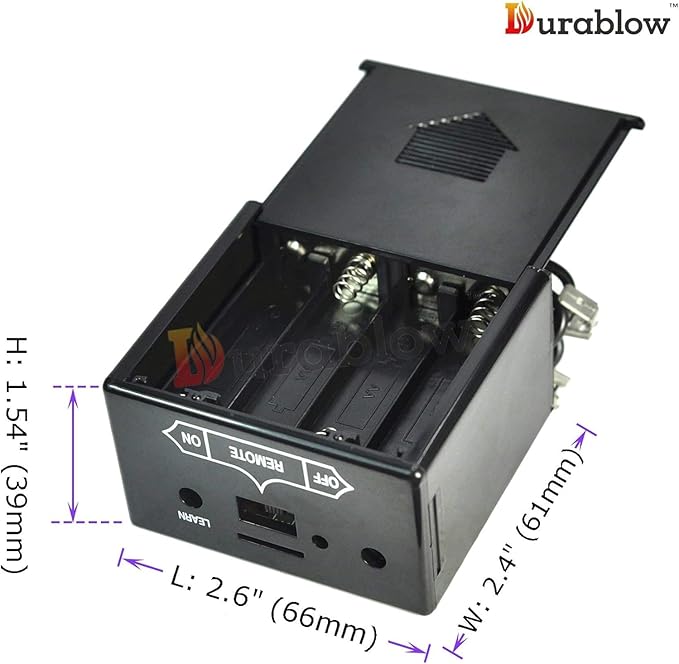

• ★ HOW RECEIVER WORKS: Receiver with LEARN function, snap-on wall plate, and 18-inch wires with connectors to connect Latching Solenoid gas valve. ▼ Receiver box dimension: 2.6"x2.4"x1.54". (measure your wall outlet box first).
• ★ REPLACES CROSS REFERENCE MODELS OF FIREPLACE: SkyTech SKY-CON, SKY-CON-TH, CON-TH, CON TH. ▼ LEGAL DISCLAIMER: The Brand name and model # (if listed) are for cross reference only. All Brands, Trademarks, and Model Numbers remain the property of their respective owners.

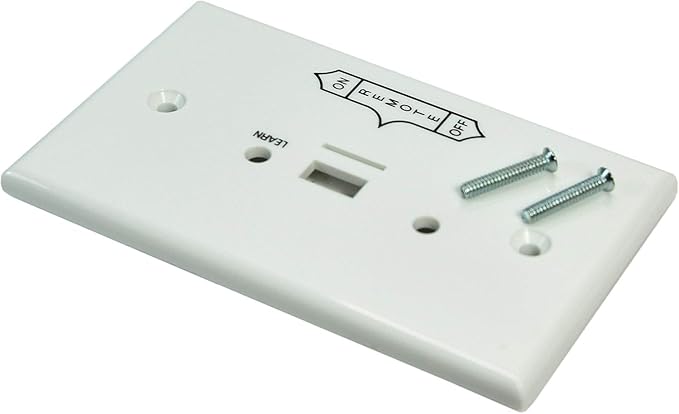

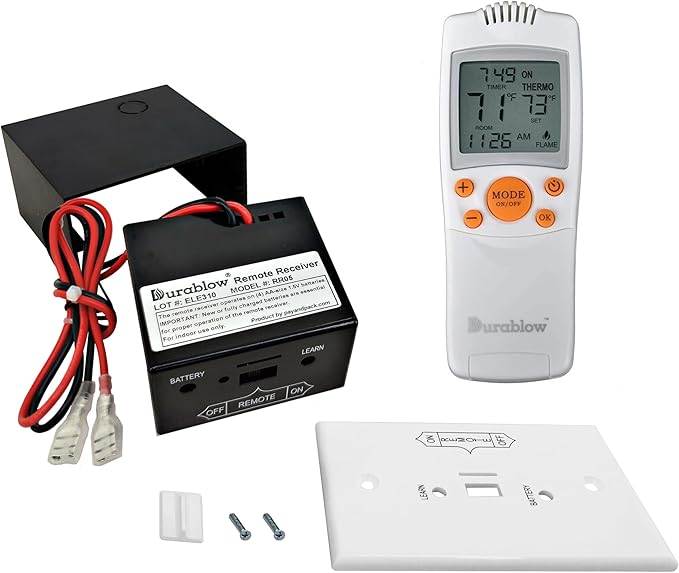

• ★ WHAT'S IN BOX: Remote transmitter, receiver box, wall mount cover plate, heat shield, screws, slide switch, wires with connectors, manuals/instructions. ▼ FCC approved. Operates at a range of 20-foot & and non-directional RF signal. ▼ The transmitter operates (2) 1.5V AAA batteries; the Receiver operates 4 (AA) batteries. ▼ Strongly recommend Energizer Lithium Batteries. ATTENTION: Any corrosion caused by a battery leak will be regarded as improper use by the user.

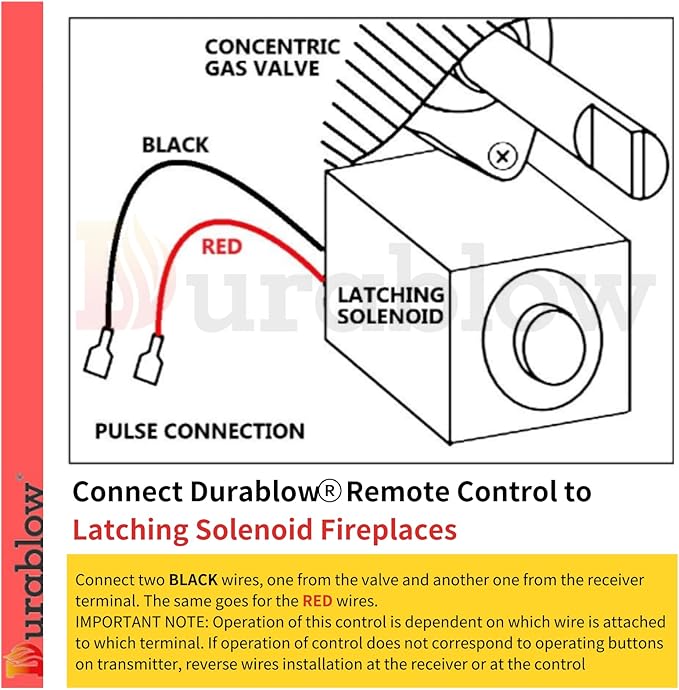

• ★ WIRING INSTRUCTIONS: ONLY qualified electrician / gas technician with the knowledge of gas appliances and gas valves that are permitted to install the remote control system. Incorrect wiring installation will damage the gas valve, electronic module of gas appliance and also the remote receiver.

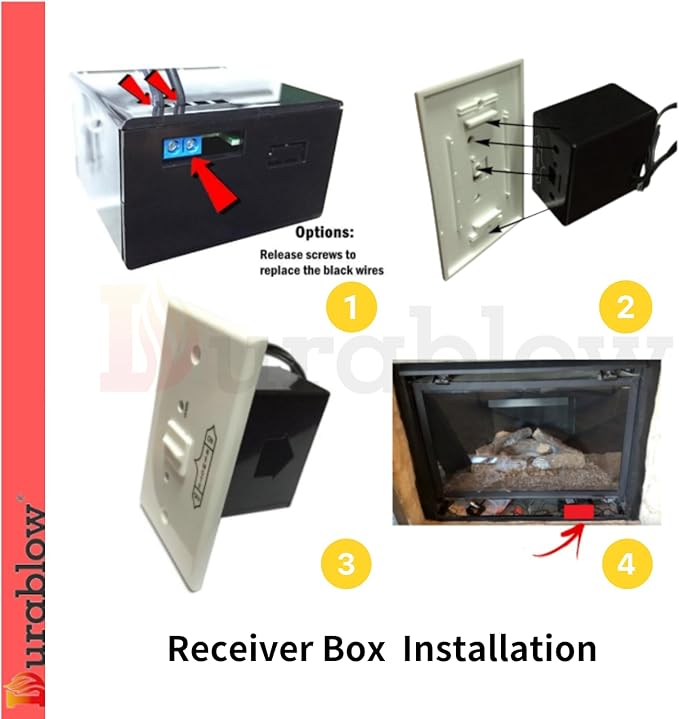

• ★ PRE INSTALLATION: Decide the receiver box location, either wall-mounted in a standard switch box or near the fireplace (keep away from heat above 130°F). 1. Ensure the receiver box's slide switch is OFF before installation. 2. Use 18-inch wires and 18 gauge stranded or solid wire for best results. 3. Splice with the original black wires or replace them by inserting new wires into the slots. 4. Wires should not exceed 20 feet. Allow space for easy removal during battery replacement or checks.
• ★ TROUBLESHOOTING: If the remote control isn't working, check the following: (1) No battery or low battery -Replace the batteries in both the transmitter and receiver box. (2) Weak signal - Move the receiver box to a different location. (3) Out of range - Move both the receiver and transmitter closer together. (4) Defective device - Contact the seller for a replacement. For more help, visit the Durablow Brand Store FAQ section or contact us.

Overview

• Brand : Durablow
• Model Name : TR_SH_Series
• Product Dimensions : 5"D x 3.4"W x 3"H
• Controller Type : Remote
• Special Feature : remote
