About This

• WIDE COMPATIBILITY: This Hungrill Smart WiFi PID control board is designed as a direct replacement for Pit Boss Pro Series 1600 Elite (PB1600PS2), Pro Series II 1150 (PB1150PS2) – replaces part no. 80145 (4MP), as well as Pro Series II 850 (PB850PS2) – replaces part no. 80146 (2MP). Also fits the DX series: 1150 DX (PB1150DX), 1020 DX Combo (PB1020DX), 850 DX (PB850DX), and 700 DX (PB700DX). Simply replace your original part# 80145 or 80146 and restore full functionality.

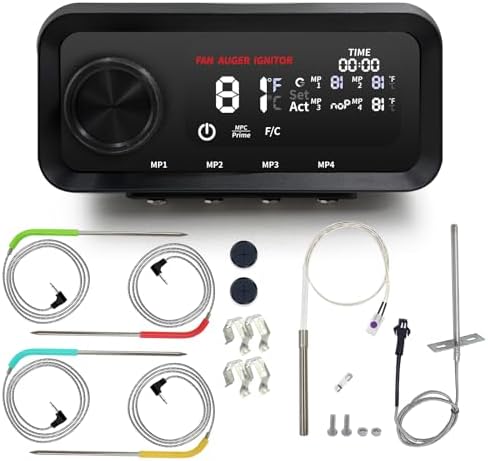

• COMPLETE 7-IN-1 UPGRADE KIT: Includes Smart WiFi PID controller, heavy-duty igniter, precision RTD probe, 4 color-coded meat probes, 4 probe clips, and 2 probe gaskets. Everything you need to restore or upgrade your Pit Boss – no extra parts required.

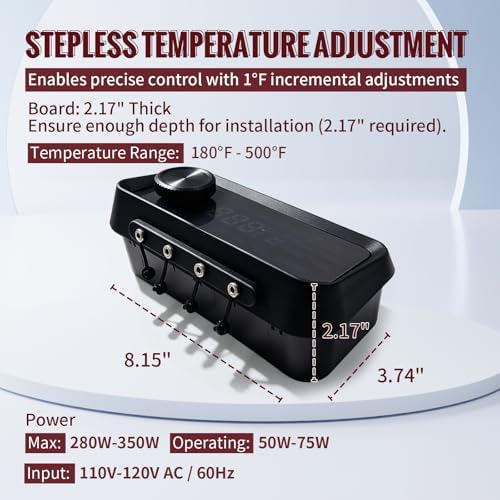

• SMART APP WIFI CONTROL: WiFi-enabled PID board with real-time monitoring via the GrillirG app. Remotely check component status (igniter, fan, motor, RTD), adjust temp from 180°F to 500°F via stepless rotary knob (±1°F), and receive instant alerts – no more babysitting your grill.

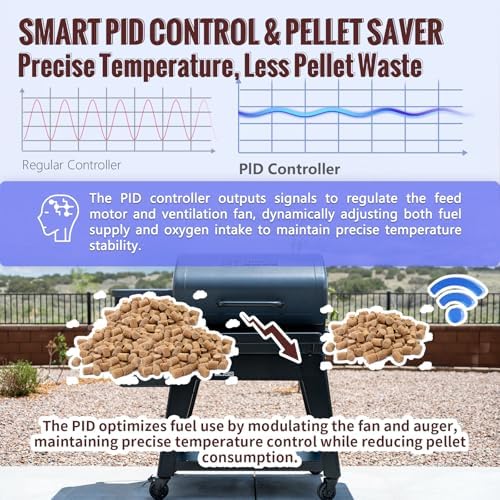

• PID CONTROL & PELLET SAVER: Two built-in PID programs selectable via the app. Choose Code 085 for grills ≤1000 in² (700 DX, 850 DX, Pro Series II 850, 1020 DX Combo) or Code 110 for >1000 in² (1150 DX, Pro Series 1600 Elite, Pro Series II 1150). For cooking mode, set above 180°F; for smoke mode, set below 180°F with P-shift (P0-P9). Ensures rock-solid stability and minimizes pellet consumption.
• FAULT DETECTION & NORMAL OPERATION: Continuous monitoring with instant alerts for electrical anomalies. Bypass Mode for specific load faults (critical faults like ignition TIMEOUT or RTD ERROR cannot be bypassed). A gentle puffing sound during operation is normal – the system is efficiently regulating the fan and auger for optimal performance.
• 4 MEAT PROBES & WARRANTY: Monitor up to four cuts at once with 4 dedicated probe ports (MP1–MP4). Color-coded sleeves (red/green/blue/yellow) for easy identification. Use MPC/Prime button to switch between probes, set target alerts, or press and hold to manually feed the auger. Backed by 1-year warranty on controller and 6-month warranty on accessories (igniter, RTD probe, meat probes).

Overview

• Brand : HunGrill
• Model Name : PSW-CompleteKIT
• Controller Type : APP Control
• Special Feature : App Companion, High Accuracy, Large Display, Programmable, Wi-Fi Support
• Color : Black
